DC-3 | Diamond Compression Cell

DC-3 | Diamond Compression Cell

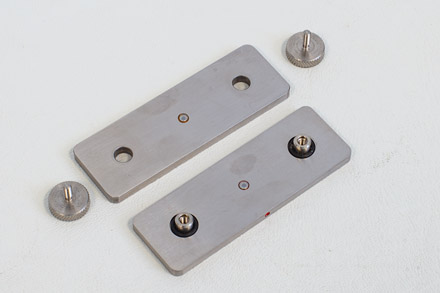

Specac’s high-pressure DC-3 Diamond Compression Cell is designed for in-compartment FTIR spectroscopic transmission analysis and FTIR microscope analysis. The DC-3 diamond compression cell enables solid and semi-solid type samples to be compressed to an ideal thickness for transmission experiments prior to IR spectroscopic analysis.
  • High Quality Diamond windows The cell uses two single flat, parallel crystal diamond windows of circa 3.5mm diameter and 0.5mm thickness.
  •  Large clear aperture 1.5mm diameter clear aperture.
  •  High working pressure A compressible O-ring is used between two fixing screws that pull the plate assemblies together for even and level sample contact.
  •  440C Stainless steel body construction

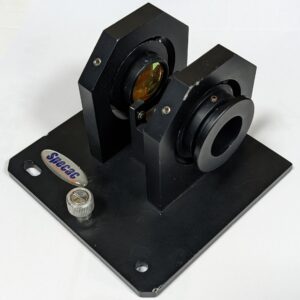

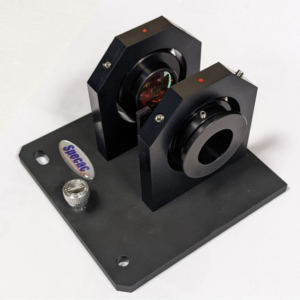

  •  Beam condenser option for benchtop FTIR This 4x beam condenser mounts in an FTIR spectrometer so that the DC-3 can be used as a regular transmission cell.

Product configurator

Product nr. DC-3 | Diamond Compression Cell

Direct leverbaar

Meer informatie over DC-3 | Diamond Compression Cell

  • Minimal sample preparation required which means that samples are ready for direct FTIR spectroscopic analysis.
  • Strong and reduced thickness diamond windows provide the highest infrared optical throughput for this type of cell.
  • Particularly well suited for the analysis of hard samples, including minerals, rubbers and rigid polymers.
  • Very easy to assemble, disassemble and clean.
  • The cell is assembled using an extremely high-strength and durable diamond-to-metal bond technology.
  • Quality of spectra obtained is of the highest quality.

Andere experts gebruiken onderstaande producten ook

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier

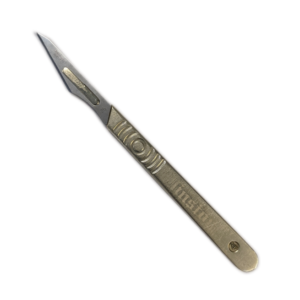

Knife Blades & Blade Remover
