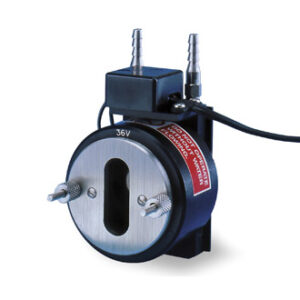

Electrical Heating Jacket

Specac’s Electrical Heating Jacket is designed to allow the study of solid and liquid samples over a temperature range from ambient to circa 250°C, via transmission spectroscopy ranging from the Far UV through to the Far IR. The variation in temperature is achieved by heating the Electrical Heating Jacket from its dedicated 30-volt supply 4000 Series power controller whilst a particular liquid or solid cell holder is contained within the Electrical Heating Jacket. Principally, the Electrical Heating Jacket is used with Specac’s Advanced Liquid or Solid Transmission cells or a Solid Cell Holder. The Jacket is installed into the sample compartment of an FTIR Spectrometer via the 3” x 2” slide mounting plate.

High temperature capability: The Electrical Heating Jacket can be heated to as high as 250°C.
Several carefully designed safety features: Fully CE safety compliant. EC Declaration of Conformity provided with the product. Protective water-cooling system.
Static or flow sampling capabilities: The Electrical Heating Jacket can be used with sealed and demountable liquid cells for static and flow sampling applications.
Versatile sampling system: Suitable for analysing solids and liquids and operating from the Far UV through to the Far IR.
Multifunctional for FTIR spectrometers: Compatible with FTIR Spectrometers via standard 3” x 2” slide mount.

Product configurator

Product nr. Electrical Heating Jacket

Direct leverbaar

Meer informatie
Toepassingen
Add-ons
Reserveonderdelen

Meer informatie over Electrical Heating Jacket

Capable of operating up to as high as 250°C.
Liquid or solid sampling cells can be quickly and easily swapped in and out of the cell to suit the specific nature of the application.
Operate in static or flow modes of operation.
Extremely versatile sampling capability.
