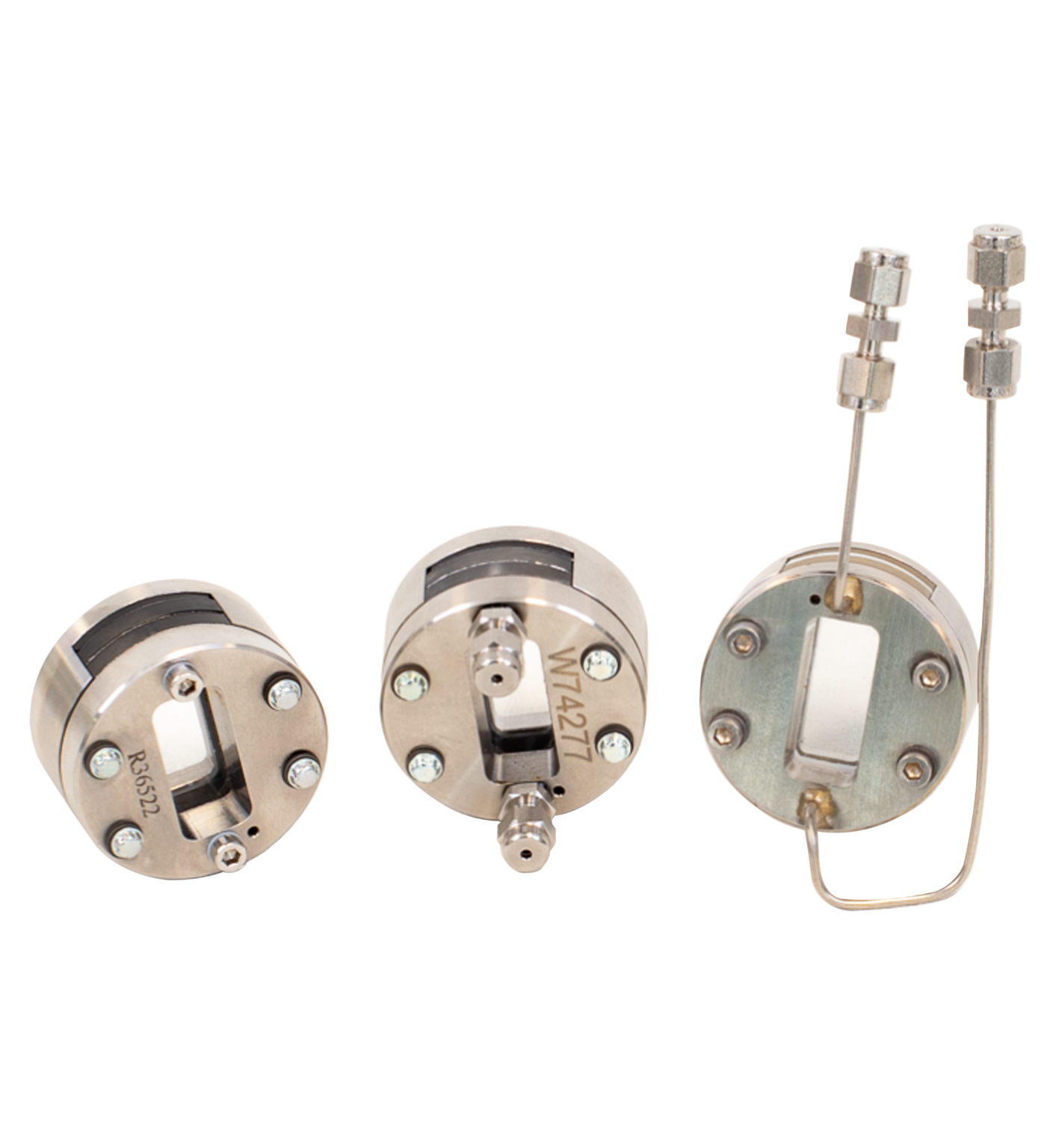

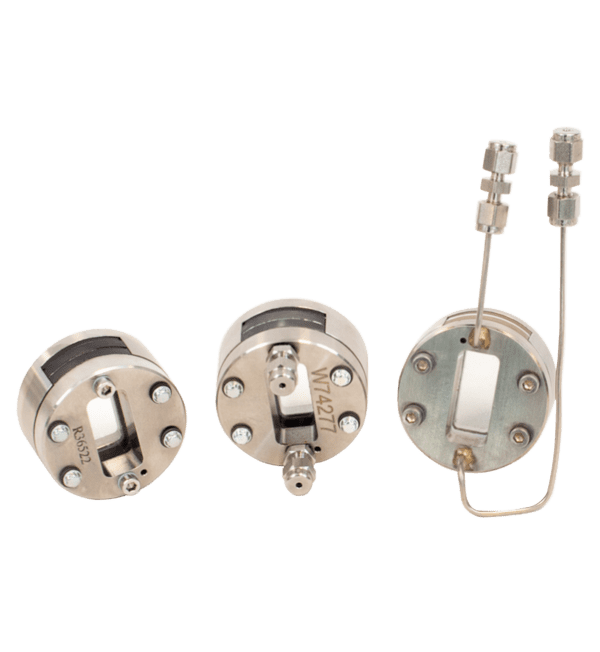

Heatable transmission cells & flow cells

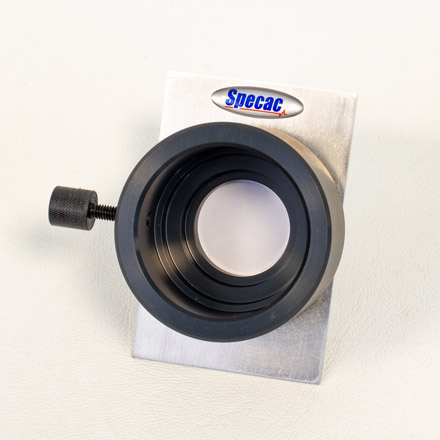

These cells are suitable for use with Specac’s range of heated cell holders: the Variable Temperature cell holder, the Electrical Heating Jacket, and the Water Heating jacket. They come in sealed, demountable, static and flow configurations and are suitable for a temperature range from +250 to -190 °C. They can also be used standalone with a slide mount attachment.

Designed to be heated or cooled These stainless-steel cells are suitable for heating to 250 °C or cooling to -70 °C (liquid cells) or -190 °C (solids cells). They feature a small port for attachment of a measuring thermocouple (not included).
Flow cell configurations Can be fitted with Swagelok connections for use with sample pumping systems. This is useful where a continuous recycling of samples and cleaning solvents is required.

Choice of permanently sealed or demountable window setsDemountable windows allow for flexibility of pathlength and may be disassembled to clean difficult samples. Sealed cells ensure pathlength stability and avoid leaks.
Extensive selection of materials Our range of windows cover spectral ranges from the near-IR through to THz frequencies.

Product configurator

Product nr. Heatable transmission cells & flow cells

Uitvoering

Configuratie

Materiaal

Clear

Voeg toe aan offerte

Direct leverbaar

Meer informatie
Toepassingen
Add-ons
Reserveonderdelen

Meer informatie over Heatable transmission cells & flow cells

Liquid flow cells

Flow cells have 1/16^th inch Swagelok unions fitted either (a) flush to the cell body or (b) to 1/16^th inch flow tubes. Either type may be used in the Specac Electrical Heating Jacket or Water Heating Jacket, but only the second type may be used in the Variable Temperature Cell Holder.

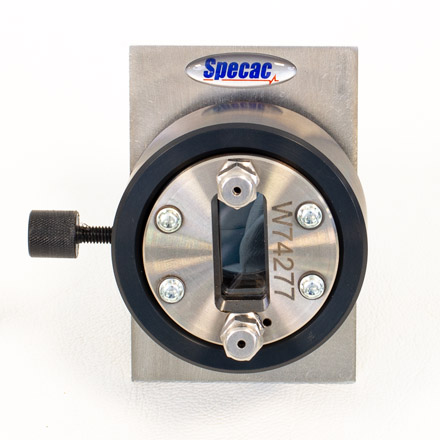

Static liquid cells

The static cells are filled via ports on the front face (sealed with hex nuts during recording of spectra). A suitable syringe can be used to introduce sample to the cell. Alternatively, Luer fittings can be screwed in place for use with a Luer syringe.

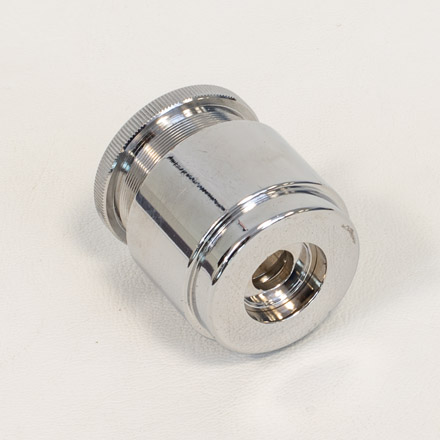

Pellet holders

These are simple screw-fit cells capable of supporting sample pellets or wafers. There is one design for the Water and Electrical Heating Jackets which can take samples up to 3 mm thickness and 28 mm diameter, and a second design for use with the Variable Temperature Cell Holder and Water Heating Jacket which can take samples up to 8 mm thickness and 30 mm diameter.

Specifications

Compatibility	Liquid flow cell GS20560/90	Liquid flow cell GS20570/80	Static liquid cell GS20500/10	Pellet holder GS20600	Pellet holder GS20610
Variable temperature holder	Yes	No	Yes	No	Yes
Electrical heating jacket	Yes	Yes	Yes	Yes	No
Water heating jacket	Yes	Yes	Yes	Yes	Yes
Flow connections	1/16^th inch flow tubes with Swagelok unions	1/16^th inch Swagelok unions	n/a	n/a
Pathlength / sample thickness	0.006 to 1.00 mm (demountable cells)			< 3 mm	< 8 mm
Spacer materials	Mylar or PTFE (demountable cells)			n/a
Window materials	NaCl, KBr, CaF₂, BaF₂, ZnSe & Spec B			n/a
Configuration	Demountable			Open cavity
Cell materials	Stainless steel			Stainless steel
Temperature	-70 to +250 °C			-190 to +250 °C
Maximum pressure	5 psi			n/a

Documentatie

Toepassingen

(Liquid Transmission Cell) AN18-06: Investigating Protein Conformational and Structural Changes Using Transmission FTIR
