Golden Gate | Diamond ATR accessory

Golden Gate | Diamond ATR accessory

The Golden Gate® is a robust option for demanding single-reflection ATR applications. It features a brazed diamond ATR crystal and a signature “Golden Gate” sample loading bridge. More advanced top-plate assemblies are available for in-situ, high- and low-temperature work.

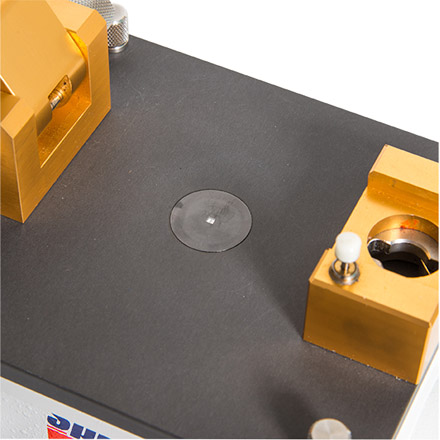

  • Monolithic diamond ATR The diamond crystal is brazed into a tungsten carbide mounting to achieve the highest possible physical and chemical resilience.
  • Robust sampling top-plates The stainless-steel top-plate joins the diamond crystal and the loading bridge into one integral part that can withstand anything the lab throws at it. There are also top-plate options for in-situ sampling at sub-zero or high temperatures up to 300 °C.

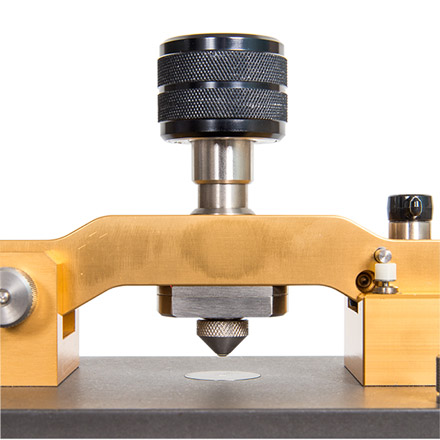

  • Signature bridge design Up to 80 lbs force can be applied to solid samples, ensuring the firmest possible contact to the diamond.
  • Sapphire anvil The standard anvil tip for loading solid samples is made from durable sapphire and is self-levelling to deal with irregularly shaped solids. There are also anvils for dealing with polymer beads, wires, and textile fibres.

Product configurator

Product nr. Golden Gate | Diamond ATR accessory

Baseplate choice

Please select the applicable spectrometer

Uitvoering

It's time for an upgrade!

Get a 10% discount on Specac Hydraulic Presses and recieve
up to €450 credit for your next purchase.

Gain €100 extra credit when swapping an old Hydraulic Press

Direct leverbaar

Meer informatie over Golden Gate | Diamond ATR accessory

Durable diamond ATR Specac’s Golden Gate™ ATR is a high-performance single reflection monolithic diamond ATR sampling accessory, featuring a diamond ATR element metal-bonded into a tungsten carbide mount, providing outstanding durability and exceptional chemical resistance. The robust design, strength, and inherent inertness of the Golden Gate™ diamond ATR element allows the spectral analysis of abrasive, hard, reactive, or corrosive samples. Focusing optics The Golden Gate uses focusing lenses to achieve a tightly focused beam on the diamond ATR crystal. The standard lens material is ZnSe but KRS-5 lenses are also available as an option where access to the lower wavenumber region of the spectrum is required. Easily adapt your ATR analysis The demountable nature of the top plate enables it to be replaced with one that allows non-ambient spectroscopic analyses under different conditions of temperature and pressure. It also carries an advantage in preparation of toxic or harmful materials, as they can be prepared in a glove box, sealed, and then measured with a higher degree of operator protection than other infrared sampling methods.


Andere experts gebruiken onderstaande producten ook

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier

Pellet Anvil for Golden Gate

Reactive Sample Anvil for Golden Gate

Sapphire Anvil for Golden Gate

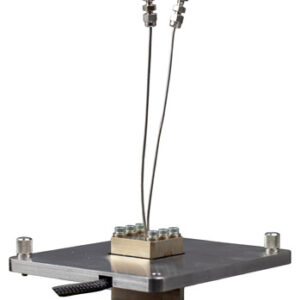

Supercritical Fluids Top Plate for Golden Gate

ATR Diamond Top Plate for Golden Gate

Flow Cell For Golden Gate

Stainless Steel Flat Anvil for Golden Gate

Reaction Cell Top Plate for Golden Gate

Reaction Cell Stir St/St 240 V Top Plate for Golden Gate

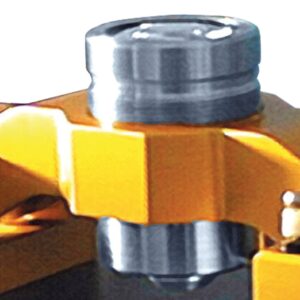

View Through Anvil for Golden Gate

Grooved Anvil / Narrow Gauge for Golden Gate

Grooved Anvil / Wide Gauge for Golden Gate

High Temperature Top Plate for Golden Gate

Low Temperature Top plate for Golden Gate

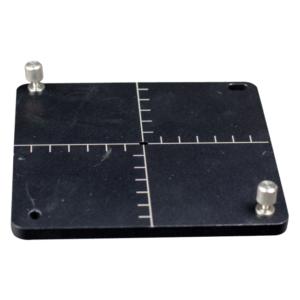

Micro Specular Reflection Top Plate for Golden Gate


Reserveonderdelen

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier



High Thermal Transfer Gaskets for Low Temperature Golden Gate

KRS-5 Lens Assembly (Pair) for Golden Gate

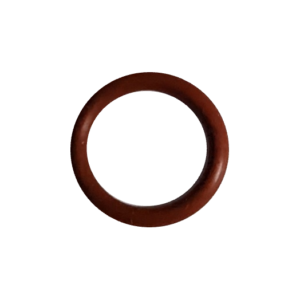

O Rings For Reaction Anvil (Pk5)

Spares GS10500/515/516/524/592/642

Spares Kit for Golden Gate Reaction Cell

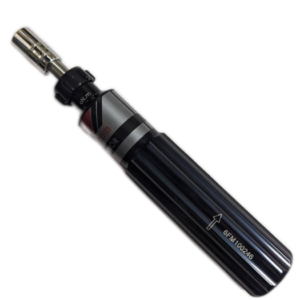

Torque Wrench for Golden Gate

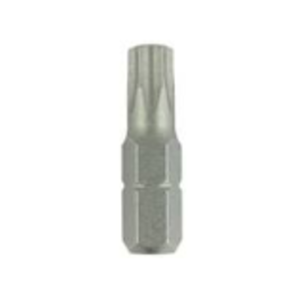

Tx25 Tamperproof Torx Bit

ZnSe Lens Assembly (Pair) for Golden Gate

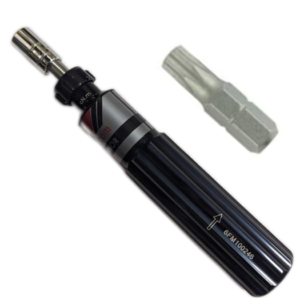

Torque Wrench + Torx Head Adapter

Graphite Gaskets for Sc Fluid Golden Gate (Pack Of 10)

Volatiles Cover / 27 mm Diameter

Purge Tubes (Bellows) Pair
