Golden Gate | High Pressure Fluids Cell

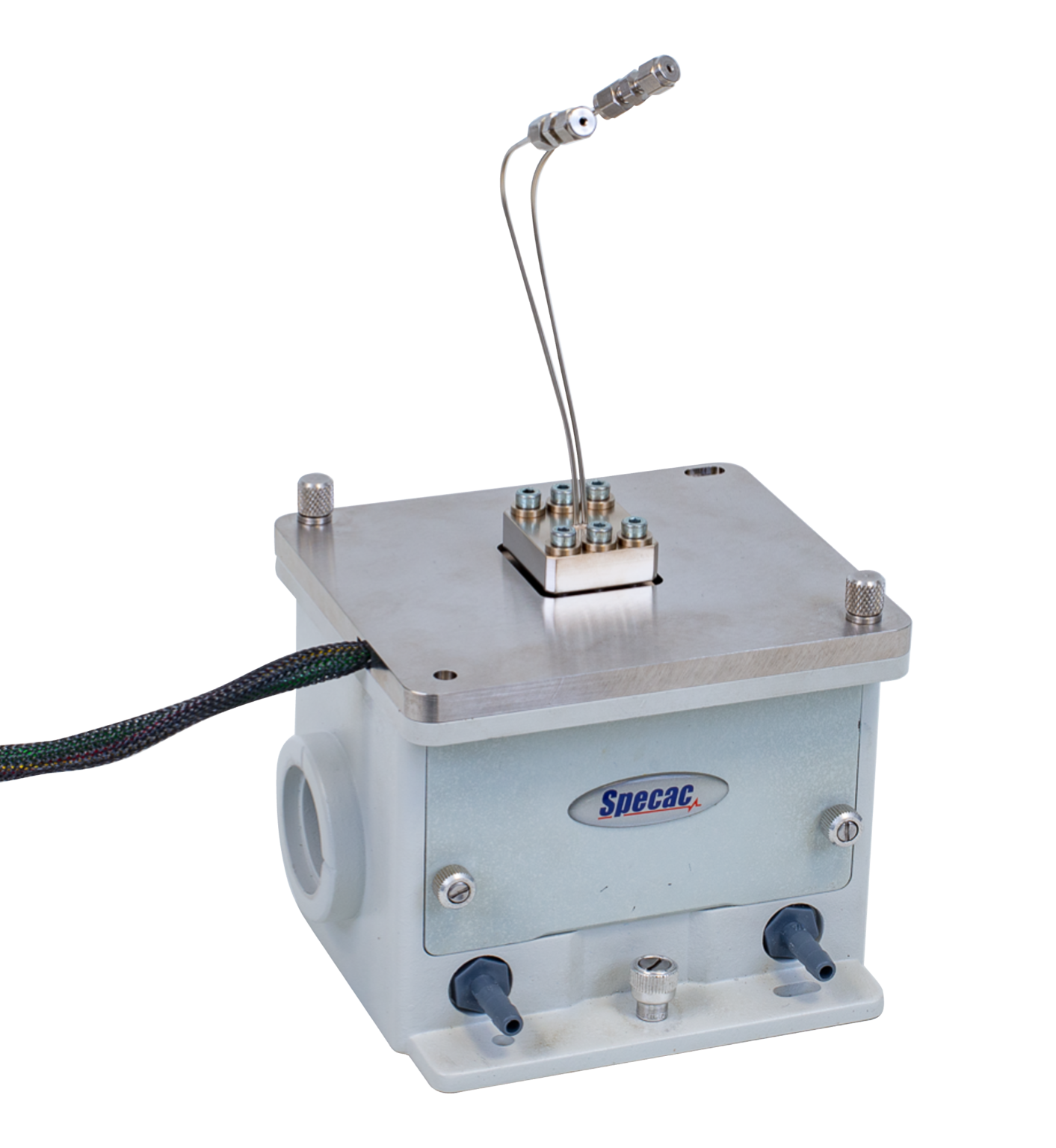

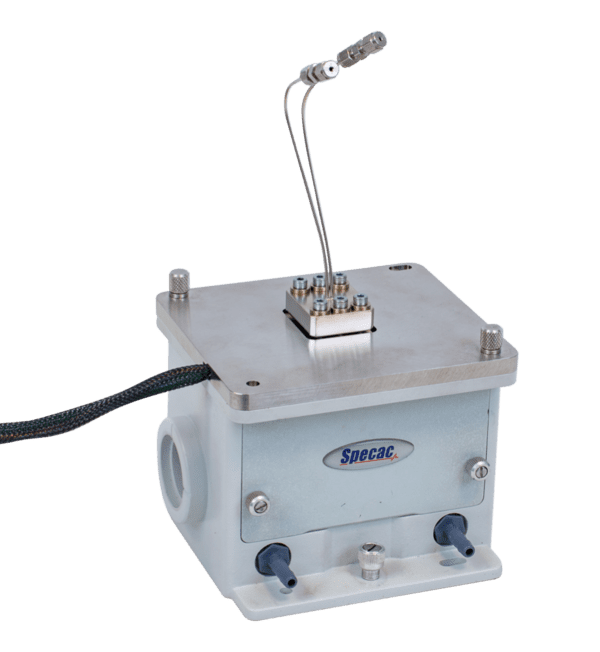

A high-temperature, high-pressure, low-volume FTIR accessory developed for the study of supercritical fluids and polymers. Based on the Golden Gate single-reflection diamond ATR accessory platform.

Compact reaction cell for supercritical pressures and temperatures: Its tiny 28 µl cell can be pressurised to 6000 psi and heated to 300 °C. It has 1/16^th inch Swagelok fittings for in-flow of samples.
Robust construction: The diamond ATR element is high temperature metal bonded into a tungsten carbide disk, avoiding the use of adhesives or resins that may be dissolved or attacked by the chemical aggressiveness of supercritical fluids.

Product configurator

Product nr. Golden Gate | High Pressure Fluids Cell

Baseplate choice

Please select the applicable spectrometer

Voeg toe aan offerte

Direct leverbaar

Meer informatie
Toepassingen

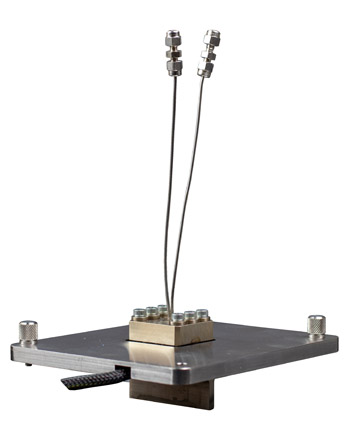

Top-Plates & Anvils
Reserveonderdelen

Meer informatie over Golden Gate | High Pressure Fluids Cell

The high thermal conductivity of the diamond element is ideal for fast temperature equilibrium and accurate temperature measurement, reducing analysis time and increasing sample throughput. The analyser is equipped with a thermal protection system to prevent thermal runaway.

Specifications

ATR crystal	Monolithic diamond
Crystal sealing	The diamond is sealed with a metal braze into a tungsten puck.
Angle of incidence	45^o
Spectral range	ZnSe lenses 5000-700 cm^-1KRS-5 lenses 6500-400 cm^-1
Temperature range	Ambient to 300 ^oC
Pressure range	Ambient to 6000 psi
Fittings	1/16^th Swagelok

Focusing optics The Golden Gate uses focusing lenses to achieve a tightly focused beam on the diamond ATR crystal. The standard lens material is ZnSe but KRS-5 lenses are also available as an option where access to the lower wavenumber region of the spectrum is required.
