Golden Gate | In-situ Reaction Cell ATR

Golden Gate | In-situ Reaction Cell ATR

The In-Situ Reaction Cell for the Golden Gate ATR is used for monitoring processes in a heated and pressurised reactor by single-reflection ATR spectroscopy. A stirring mechanism is an optional add-on.
  • Pressurised reaction cell: The 24 ml cell can be pressurised to 3000 psi and heated to 200 °C. It features a cooling jacket and has 1/8th inch Swagelok fittings for in-flow of reactants.
  • Resistant materials: The In-Situ reaction chamber can be manufactured from Stainless-Steel or Haselloy, depending on the application. The monolithic diamond ATR crystal is robust and chemically resistant.

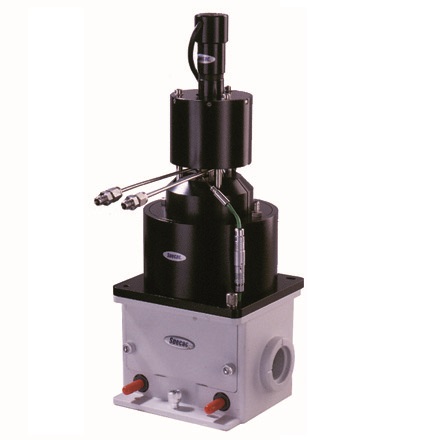

  • Optional stirring device: A motorised variable speed stirrer with sapphire shaft and integrated pressure cap is available as an option.

Product configurator

Product nr. Golden Gate | In-situ Reaction Cell ATR

Baseplate choice

Please select the applicable spectrometer

It's time for an upgrade!

Get a 10% discount on Specac Hydraulic Presses and recieve
up to €450 credit for your next purchase.

Gain €100 extra credit when swapping an old Hydraulic Press

Direct leverbaar

Meer informatie over Golden Gate | In-situ Reaction Cell ATR

Specifications

ATR crystalMonolithic diamond
Crystal sealingThe diamond is sealed with a metal braze into a tungsten puck.
Angle of incidence45o
Spectral rangeZnSe lenses 5000-700 cm-1 KRS-5 lenses 6500-400 cm-1
Temperature rangeAmbient to 200 oC
Pressure rangeAmbient to 3000 psi
Fittings1/8th Swagelok
Cell materialStainless-Steel or Hastelloy

Focusing optics The Golden Gate uses focusing lenses to achieve a tightly focused beam on the diamond ATR crystal. The standard lens material is ZnSe but KRS-5 lenses are also available as an option where access to the lower wavenumber region of the spectrum is required.


Andere experts gebruiken onderstaande producten ook

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier

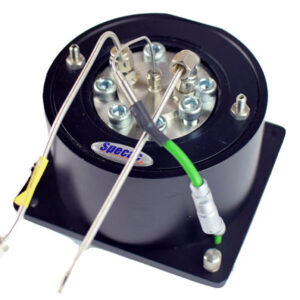

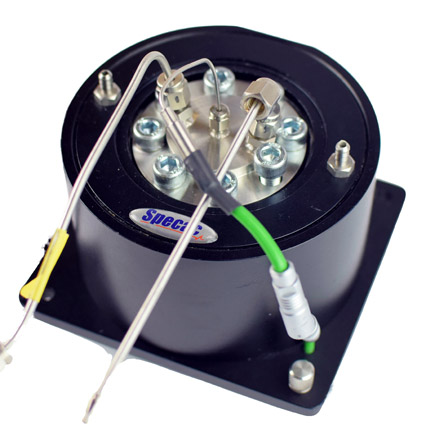

Reaction Cell Top Plate for Golden Gate

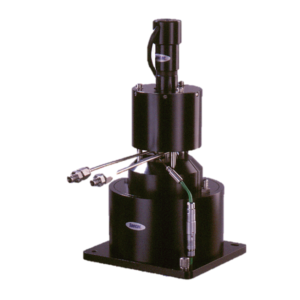

Reaction Cell Stir St/St 240 V Top Plate for Golden Gate


Reserveonderdelen

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier



KRS-5 Lens Assembly (Pair) for Golden Gate

ZnSe Lens Assembly (Pair) for Golden Gate

Spares GS10500/515/516/524/592/642

Spares Kit for Golden Gate Reaction Cell

Purge Tubes (Bellows) Pair
