Golden Gate | High Temperature ATR

Golden Gate | High Temperature ATR

The Golden Gate® is a robust option for demanding single-reflection ATR applications. It features a brazed diamond ATR crystal and a signature “Golden Gate” sample loading bridge. More advanced top-plate assemblies are available for in-situ, high- and low-temperature work. The High Temperature Golden Gate option enables analyses up to 300 ^oC, suitable for polymer studies and other temperature-ramping experiments.

High temperature capability: Solid and liquid samples can be heated up to 300^oC; suitable for adhesive, coating, paint, corrosive, catalytic, cement, soil, protein, drug substance, and acid-soap phase transition applications.
Robust brazed monolithic diamond ATR: Adhesive-free, non-laminated monolithic diamond with brazed tungsten carbide mounting enables excellent thermal and chemical robustness, scratch resistance, and a wide spectral range.
USB controller and PC based control software: PC software and USB controller save lab space and allow real-time monitoring of temperature curves, automation, and easy data logging.
Pressure tower: Reduced sample-to-sample variation with repeatable and reproducible load application pre-set to 80 lbs (adjustable to 180lbs upon request).

Product configurator

Product nr. Golden Gate | High Temperature ATR

Baseplate choice

Please select the applicable spectrometer

Voeg toe aan offerte

Direct leverbaar

Meer informatie
Toepassingen
Top-Plates & Anvils
Reserveonderdelen

Meer informatie over Golden Gate | High Temperature ATR

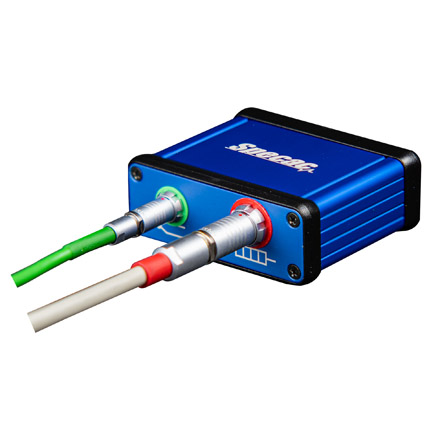

USB Temperature Controller The High Temperature Golden Gate is controlled by a USB-connected controller operated through a software interface. The software is free to download from Specac’s website.

PC control of accessory temperature
Graphical display of temperature
Datalogging temperature to file
Temperature sequence programming
Windows 7, 8 & 10 compatible

Applications

Polymers & adhesives
Biomaterials
Carbon capture media
Chemical processes

Specifications

ATR crystal	Monolithic diamond
Crystal sealing	The diamond is sealed with a metal braze into a tungsten puck.
Angle of incidence	45^o
Spectral range	ZnSe lenses 5000-700 cm^-1 KRS-5 lenses 6500-400 cm^-1
Temperature range	Ambient to 300 ^oC

Documentatie

Toepassingen

Andere experts gebruiken onderstaande producten ook

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier

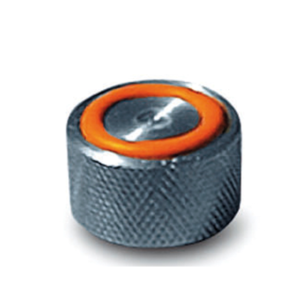

Reactive Sample Anvil for Golden Gate

GS10536

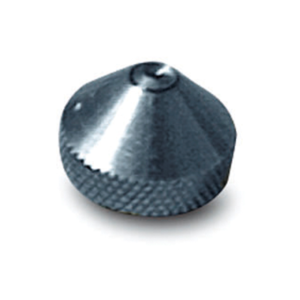

Sapphire Anvil for Golden Gate

GS10531

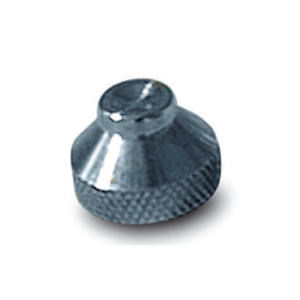

Pellet Anvil for Golden Gate

GS10532

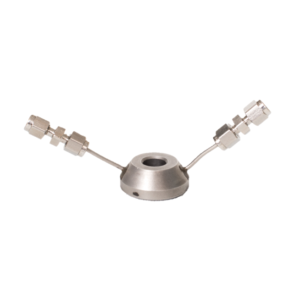

Flow Cell For Golden Gate

GS10568

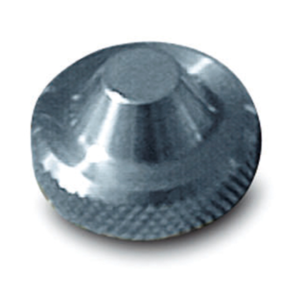

Stainless Steel Flat Anvil for Golden Gate

GS10549

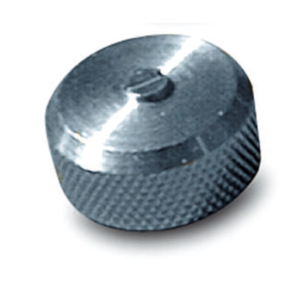

Grooved Anvil / Narrow Gauge for Golden Gate

GS10547

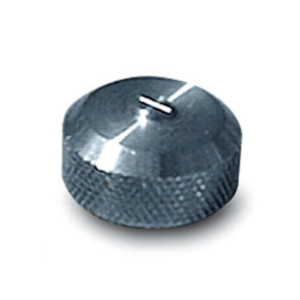

Grooved Anvil / Wide Gauge for Golden Gate

GS10548

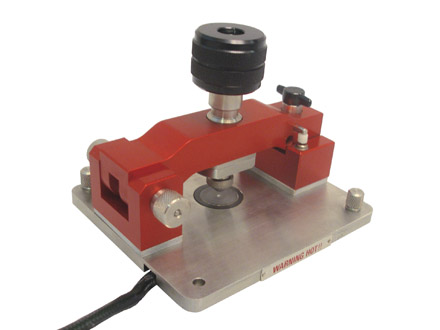

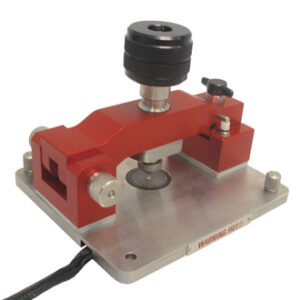

High Temperature Top Plate for Golden Gate

GS10640

Reserveonderdelen

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier

KRS-5 Lens Assembly (Pair) for Golden Gate

GS10508

ZnSe Lens Assembly (Pair) for Golden Gate

GS10552

Volatiles Cover / 27 mm Diameter

GS10503

Purge Tubes (Bellows) Pair

GS10707
