Gateway | Multi-reflection HATR accessory

Gateway | Multi-reflection HATR accessory

The Gateway™ ATR is a 6-reflection ATR accessory from Specac designed for routine use in academic and industrial laboratories. Interchangeable sampling top plates allow for solid, liquid, flow and heated experiments to be performed.
  • Horizontal ATR (HATR) design
  • High sensitivity ATR
  • Multiple Sampling options – Flat, troughed (for liquids), flow through and heating options available
  • ZnSe, Si and Ge crystal options
  • 45 ° Angle of Incidence

Product configurator

Product nr. Gateway | Multi-reflection HATR accessory

Baseplate choice

Please select the applicable spectrometer

It's time for an upgrade!

Get a 10% discount on Specac Hydraulic Presses and recieve
up to €450 credit for your next purchase.

Gain €100 extra credit when swapping an old Hydraulic Press

Direct leverbaar

Meer informatie over Gateway | Multi-reflection HATR accessory

The Gateway ATR is a 6-bounce multiple reflection ATR accessory designed for improved signal-to-noise resolution on low intensity peaks in your spectrum compared to single bounce accessories. Interchangeable Top Plate Options A wide range of interchangeable crystal ATR top-plates and sampling accessories can be used on the Gateway™ ATR Accessory optical unit to provide unrivalled sampling versatility. Analyse liquids, pastes and solids under static, flow conditions from ambient to 200 °C.

  • Flat Top Plate (supplied as standard)

For pastes, viscous fluids and solids (with supplied clamp) under static conditions and ambient temperature.

  • Trough Top Plate (supplied as standard)

For Liquids and pastes nder static conditions and ambient temperature.

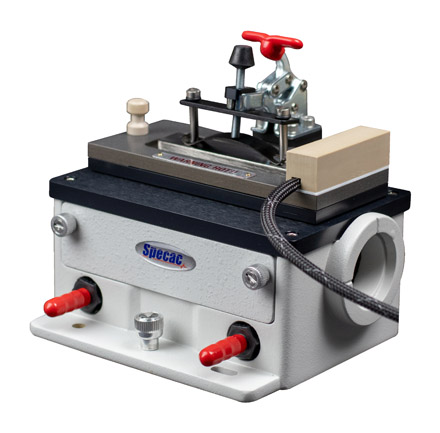

  • Electrically Heated Trough Top Plate

For studying samples under static conditions from ambient to 200 °C.

  • Water Heated Trough Top-Plate

For studying samples under static conditions from sub-ambient to 90 °C. Requires thermocirculating bath. (LINK?)

  • 550 μL Flow Through Top Plate

For monitoring Liquids under flow conditions at ambient temperatures

  • 550 μL Thermostablaised Flow Through Top Plate

For monitoring Liquids under flow conditions at ambient to 90°C. Requires thermocirculating bath. (LINK?)   Crystal specifications

MaterialRange (cm-1)Refractive indexDepth of penetration* (µm)
ZnSe7800-5002.412.0
Ge5500-4804.000.7
Si8000-1350; 500-333.410.9

*at 1000 cm-1. Calculated for a 45° angle of incidence and a sample refractive index of 1.5.


Andere experts gebruiken onderstaande producten ook

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier

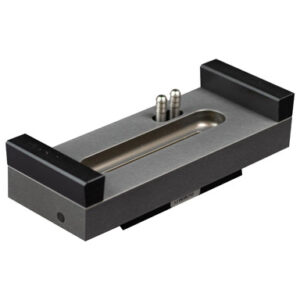

Water Heated Trough Top Plate for Gateway (ZnSe crystal)

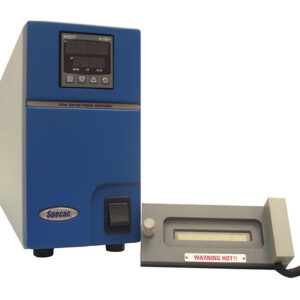

Electrically Heated Trough Top Plate for Gateway (ZnSe crystal)

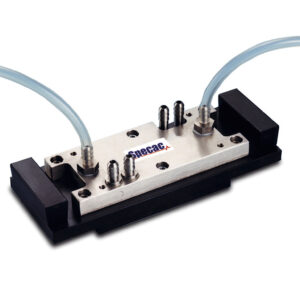

Thermostabilised Flow Through Top Plate for Gateway (ZnSe crystal)

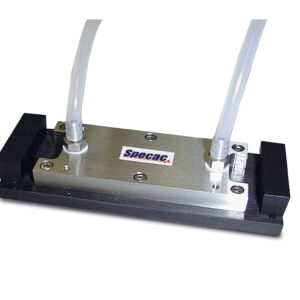

550 μl Flow Through Top Plate for Gateway (ZnSe crystal)

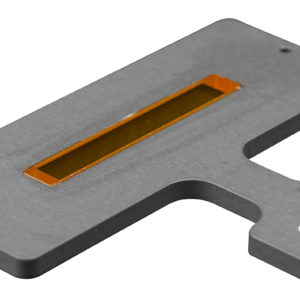

Flat Top Plate for Gateway (ZnSe crystal)

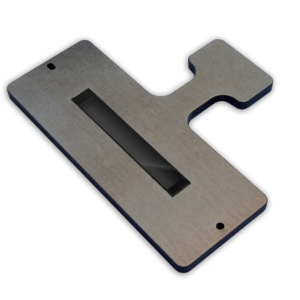

Flat Top Plate for Gateway (Ge crystal)

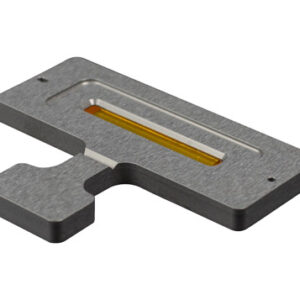

Gateway Trough Top Plate for Gateway (ZnSe crystal)


Reserveonderdelen

Ontbreekt er een onderdeel waar je naar opzoek bent? Laat ons weten klik hier

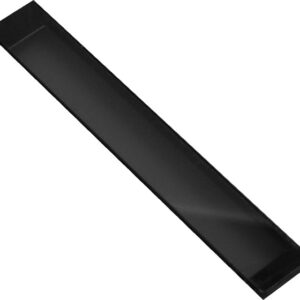

Replacement Ge Crystal for Gateway

Replacement ZnSe Crystal for Gateway

Gasket Replacement Kit for Gateway

Gasket Seal Trough Top Plate for Gateway

Gaskets For 550 μl Gateway Top Plate

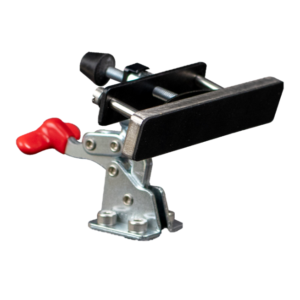

Gateway Clamp Assembly

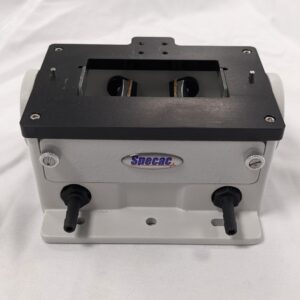

Gateway Optical Base Unit

Replacement Si Crystal for Gateway

Silicone Tubing (5 m) For Gateway Flow Top Plate

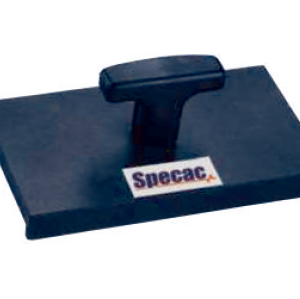

Volatiles Cover for Gateway

Purge Tubes (Bellows) Pair
